FLATBED DESOLDERING HEATING PLATFORM
Product Details

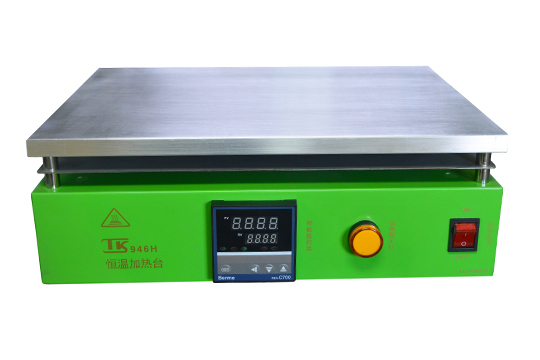

TAIKD946A flatbed rework heating plate, the control circuit uses a high-performance microprocessor, which controls the accurate, intuitive display, and practical machine can automatically determine the heating part of the fault. 946D heating plate made of high quality aluminum alloy caused by having fast heating, high efficiency, temperature uniformity, temperature control and convenient advantages. 946D small size, temperature stability, simple operation, easy to use, is the ideal tool for heating.
2. Uses
1. components for heating operation;
2. SMD recycling operations;
3. PCB board demolition, welding and other operations.
3. features
CPU temperature control, accurate and constant.
Fever laps easy installation.
Particularly temperature increases a key setting function!
Temperature setting offers two modes: normal setting and immediate setting.
Temperature display and intuitive, and accurate.
With automatic sensor detection function. High quality aluminum plate, thermal efficiency, temperature uniformity.
4. Specifications
Model: 946A
Power supply voltage: 220 ± 10% VAC
Heat generator power: 1800W
Temperature range: 50 ℃ ~ 350 ℃
Temperature display: 3 (show distinguish, 1 ℃)
Thermostatic stability: ± 2 ℃
Heating panel size: 196×145×200 (mm)
Weight: (kg) to about 4.75
caveat:
1. TAIKD946D work platform placed, countertops should be smooth, the material must be resistant to heat.
2. in the course of their work, the board and around the very hot, be careful to guard against burn, burn!
3. the heated object pay attention to safety, the heating temperature is too high may damage the components.
4. prohibiting the use of a hot plate in the vicinity of flammable and combustible substances.
5. to move or touch the machine, remember to turn off the power until the heating plate is completely cooled to room temperature.
6. the machine is a high-temperature electric products, remember to turn off the power when not in use, such as machine to avoid danger and accidents.
7. in order to extend the life of the heating element and the machine is prohibited in high temperature (300 ℃ above) using the machine continuously for a long time, under normal circumstances, the machine continuous working time should not exceed eight hours.
note:
1. make sure the machine ground grounded.
2. Do not let the air flow blowing straight on the plate, otherwise it will affect the heating of the heater.
